Introduction to Projection Transformations

Mapping:
Projection: Mapping with m less than n
Planar Projection: maps 3D object onto plane

Parallel Projection

  • parallel lines preserve relative length

Perspective Projection

  • produces foreshortening
  • non-linear

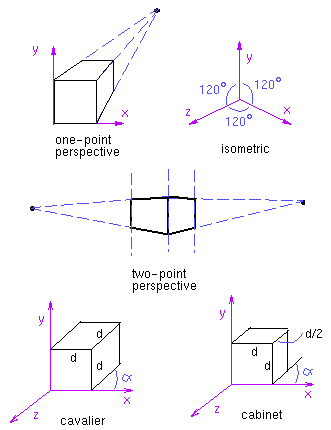

A Taxonomy of Projections


A Basic Projection Matrix

Let's use the following example to construct a matrix that performs a perspective transformation:
From similar triangles, we can see that  y'/d = y/z
Thus, y' = yd/z
Similarly, x' = xd/z

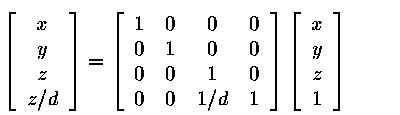

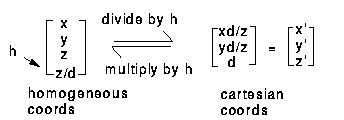

We can express this in matrix form by altering the value of the homogeneous parameter, h:


  •  non-linear because of divide by h
  • can incorporate scaling
