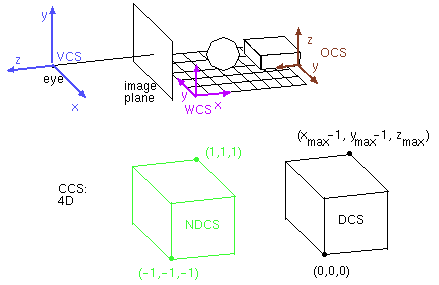

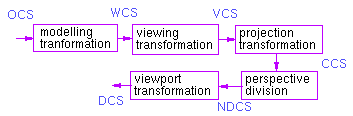

Coordinate Systems in the Graphics Pipeline

OCS - object coordinate system  WCS - world coordinate system  VCS - viewing coordinate system  CCS - clipping coordinate system  NDCS - normalized device coordinate system  DCS - device coordinate system



OpenGL functions for setting up transformations

modelling transformation  modelview matrix	glTranslatef()  glRotatef()  glScalef()
viewing transformation  modelview matrix	gluLookAt()
projection transformation  projection matrix	glFrustum()  gluPerspective()  glOrtho()  gluOrtho2D()
viewing transformation	glViewport()



---
